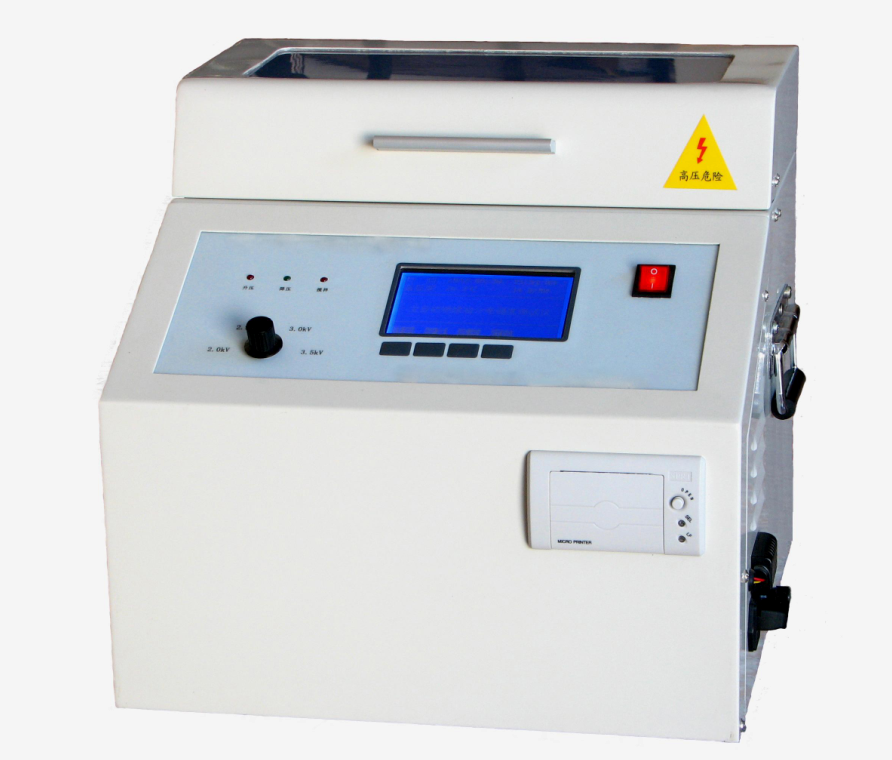

全自动绝缘油介电强度测试仪是我公司科研技术人员,依据国家标准GB507-86及行标DL-474·4-92DL/T596-1996的有关规定,发挥自身优势,经过多次现场试验和长期不懈努力,精心研制开发的高准确度、全数字化工业仪器。该机操作简便,造型美观大方。由于采用了全自动数字化微机控制,所以测量精度高、抗干扰能力强、安全可靠。
技术指标
1. 升压器容量 1.5 kVA
2. 升压速度 2.0 kV/s,2.5 kV/s,3.0 kV/s,3.5 kV/s 四档任选
3. 输出电压 0~100kV
4. 电源畸变率 <1%
5. 显示方式 大屏幕液晶汉字显示
6. 电极间隙 标准2.5 mm
7. 外形尺寸 409 mm×393 mm×388 mm
8. 仪器重量 29 kg;
使用条件
1. 环境温度 0~40℃
2. 相对湿度 ≤85%
3. 工作电源 AC 220V ± 10%
4. 电源频率 50 ± 5 Hz
5. 功率消耗 <200 W
